Goal

Save the text entered by the user via Direct Text Input in the Workflow to a defined location.

Table of Contents

• Goal
• Prerequisites
• Final Workflow
• Creating and Filling out
• Connection
• Running
• Results

Prerequisites

• KadiStudio is installed and running.

  • See: Installation Guide

• Tools are downloaded and available.

  • See: in progress

• You are familiar with Built-in Nodes and Environment Nodes.

  • See: KadiStudio: FAIR Modelling of Scientific Research Processes (Article)

Final Workflow

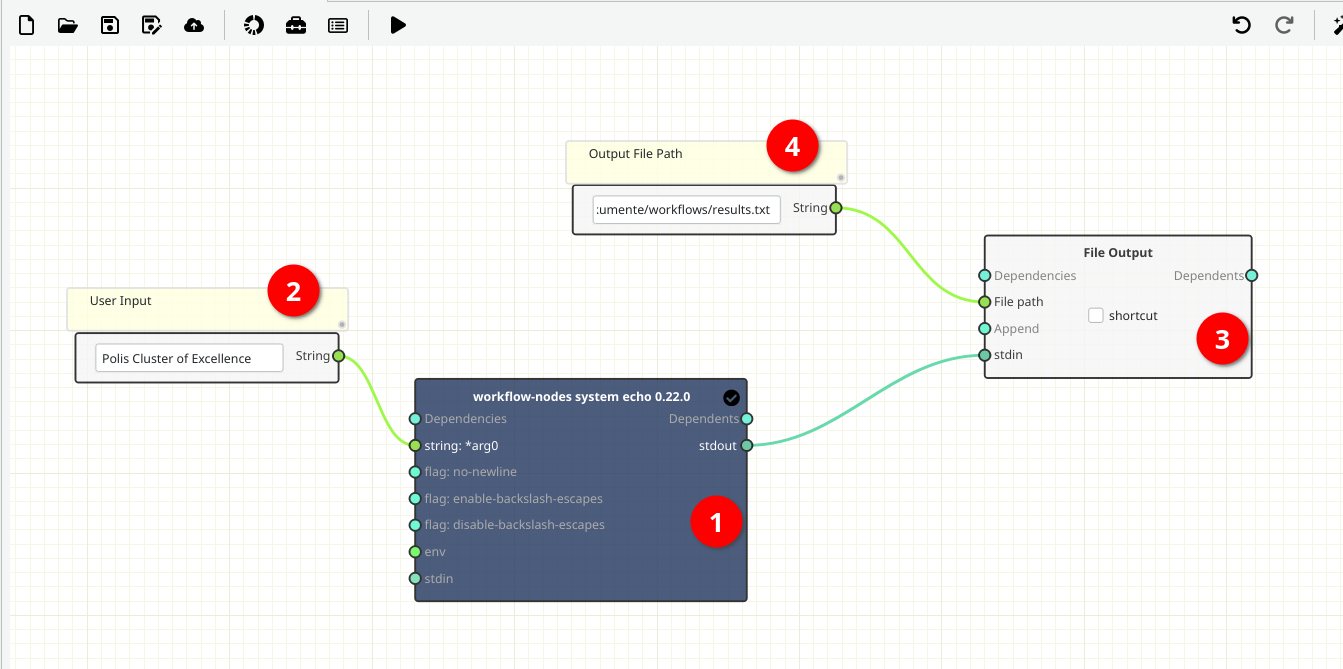

The figure below shows the final layout of the workflow.

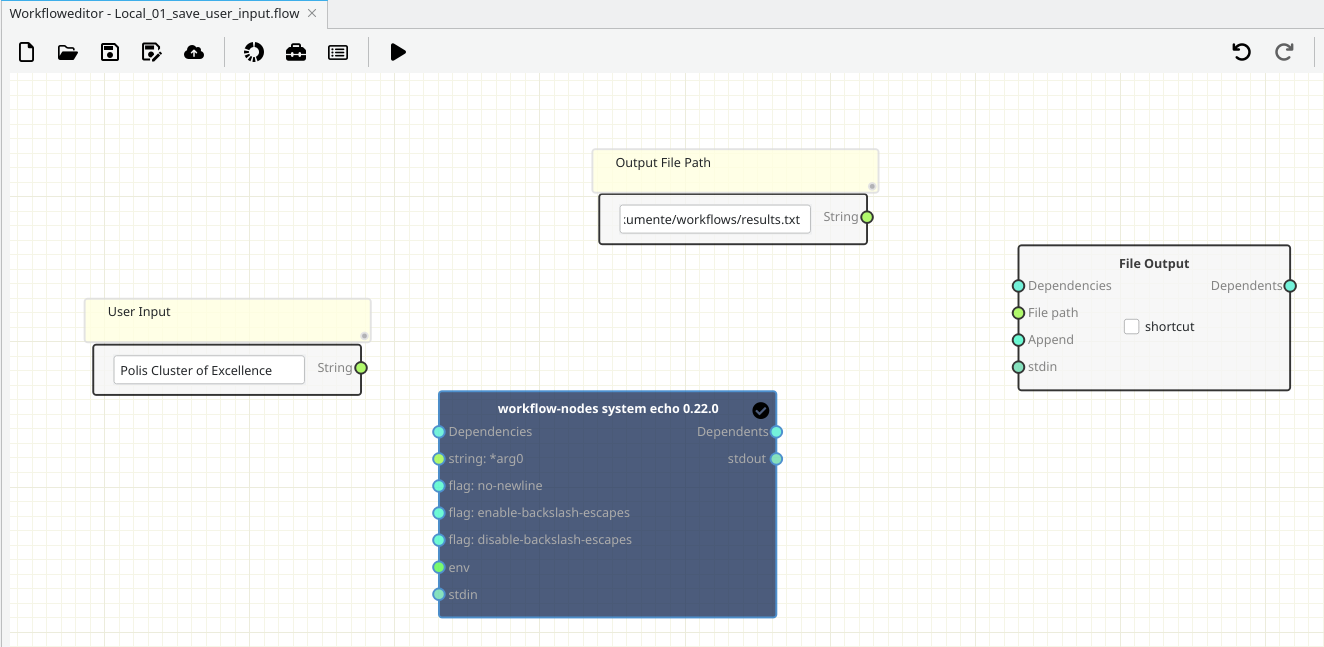

Creating and Filling out

1- [Node 1] - Add a workflow-nodes system echo Node

• Where to read more:

  https://workflow-nodes.readthedocs.io/en/stable/usage/cli.html#workflow-nodes-system-echo

• How:

  • In the workspace, right-click and from Add tool (Top), search echo and select workflow-nodes system echo (Bottom).

2- [Nodes 2 and 4] - Add and fill out Source Nodes (Variables)

• How:

  • In the workspace, right-click and select Add Source → String (2, 4).

• Node 2 : Enter Text Here. (e.g., Polis Cluster of Excellence)
• Node 4 : Set Output File Path. (If the file does not exist, it will be created automatically.)

3- [Node 3] - Add a File Output Node

• How:

  • In the workspace, right-click and select Add File IO → FileOutPut (Built-in Node).

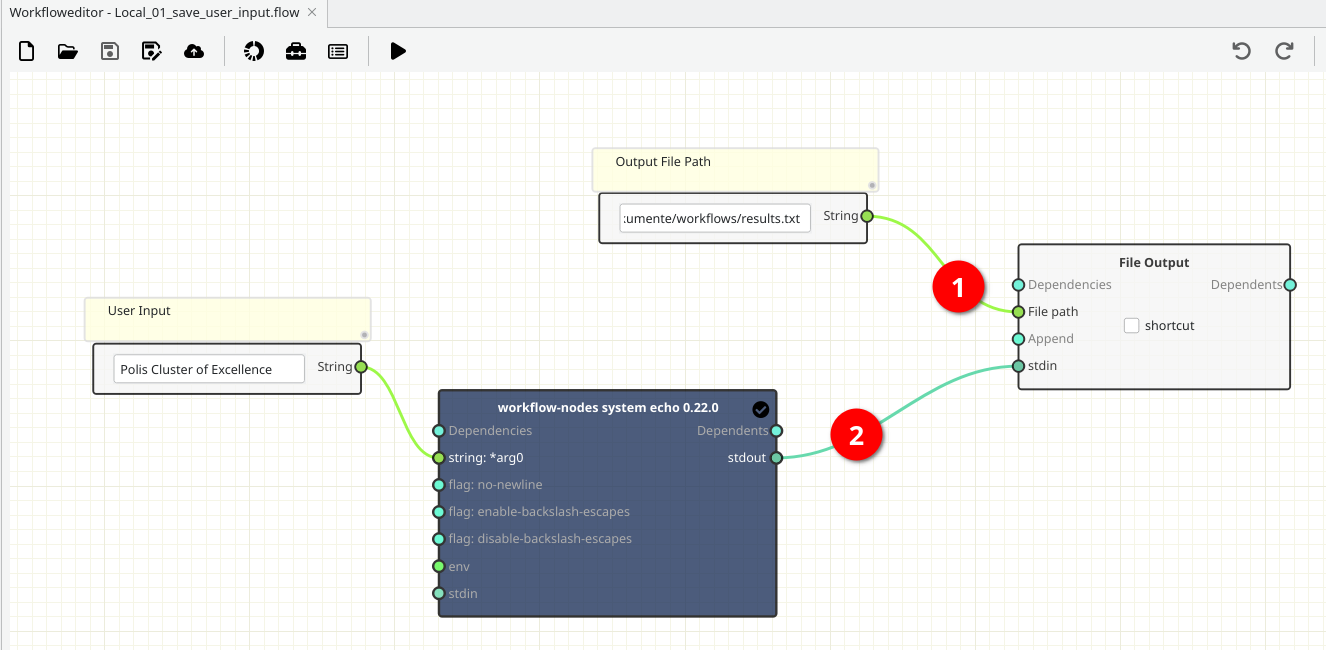

Connection

• Pay attention to the ports colors.

  • Variabls (light green)[1]
  • stdin/stdout ports (dark green) [2]

Running

1- Save the workflow by pushing Play button.

2- Start running the workflow by using Start button.

3- Status: Finished

4- The user-provided text is stored in a file at the specified path.

Results

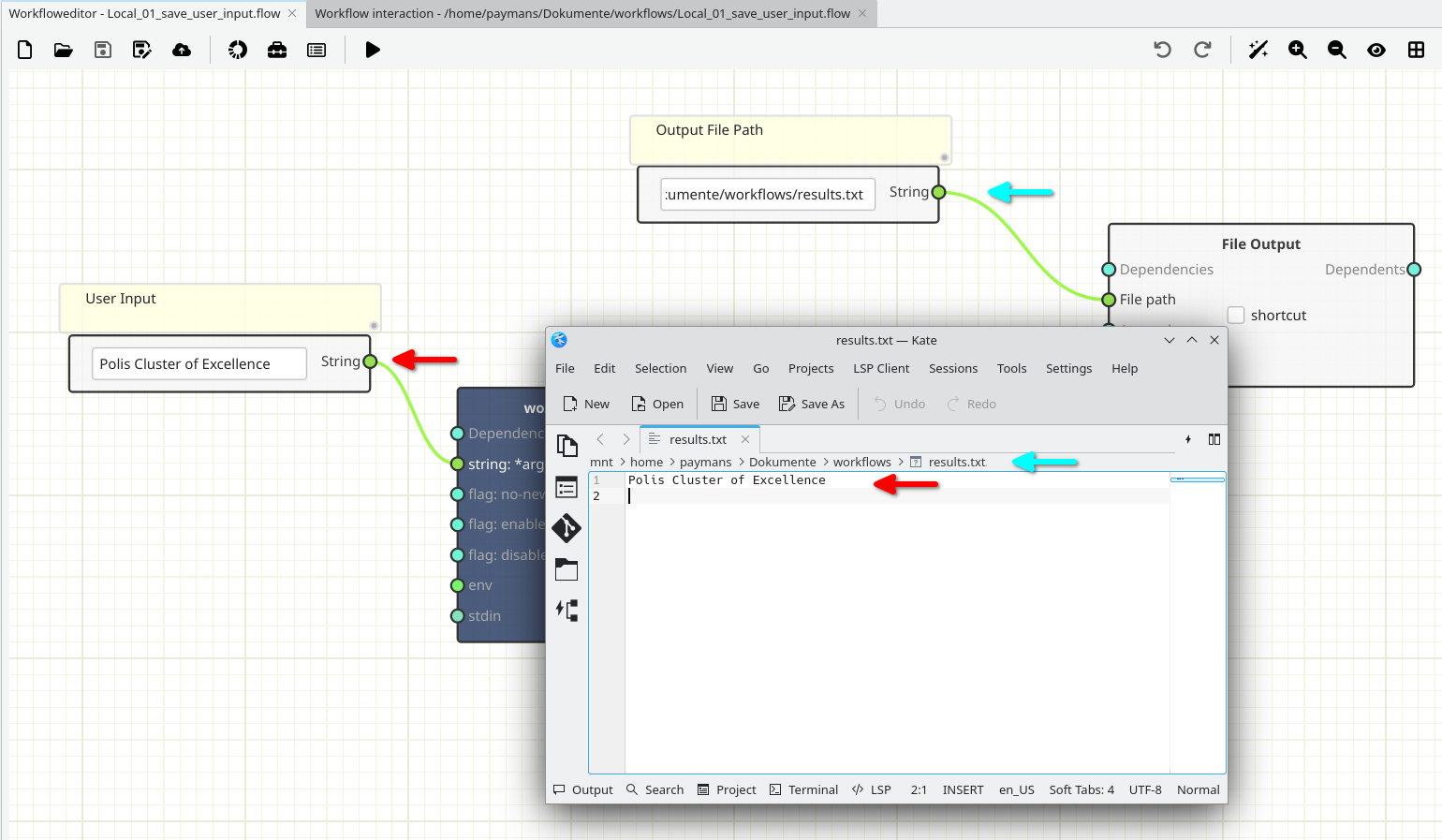

The figure below shows the results.

Done.
